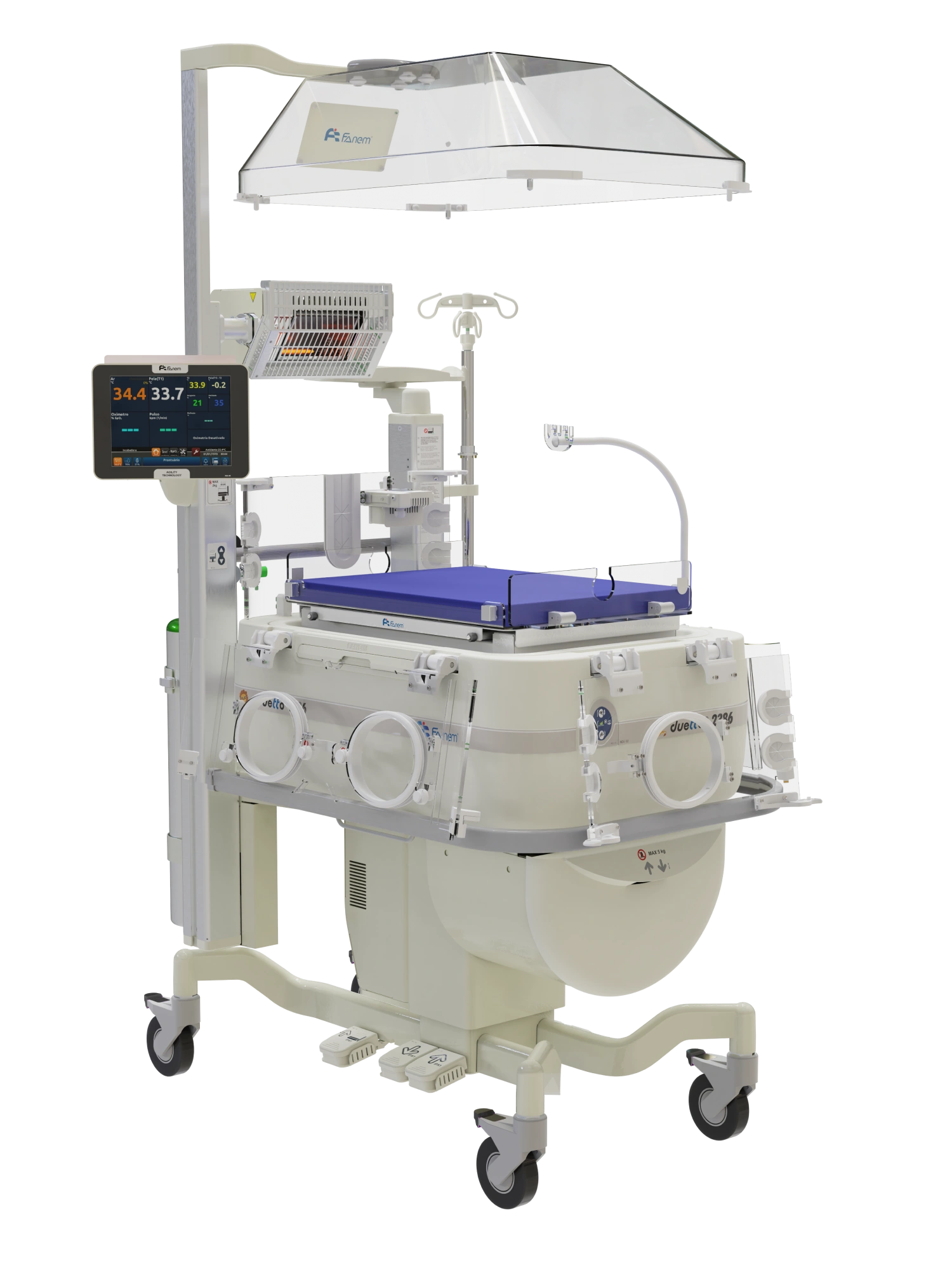

DUETTO® 2386 HYBRID UNIT

Duetto® 2386 is the first equipment manufactured in Brazil, which operates as both a neonatal incubator and an open radiant heat intensive care unit. It was developed following the highest technological standards, to provide extensive and safe treatment, for use in a wide variety of ways.

Its functionalities expedite emergency care, besides reducing situations of moving and handling patients, to avoid causing stress. Its structure is designed to reduce the risk of infection and facilitate use, providing safety and comfort to the operator and the patient. It also features a modern monitor with a new interface layout that includes a multi-color alarm indicator with a 360° diffuser and a new dome that allows for greater visibility and easier decubitus position.

• Touchscreen monitor display;
• Buttons for switching between incubation and heated cradle modes;
• Pedal for switching between incubation and heated cradle modes;
• Drawer for the X-ray frame;
• Audiovisual alarms;
• External access devices to minimize contact with the patient and the internal environment of the incubator;
• Independent air and oxygen inlets with filters;
• Monitor information programmable in several languages;
• Display of date, time and historical trend curves;
• Display of the proportional power level of the heating element;
• Memory storage of programmed settings and alarms;
• Automatic self-test system;
• 360° rotating bed;
• Smooth and continuous tilt system for reverse Trendelenburg and Trendelenburg positions with electrical drive outside the dome;
• In-bed scale;
• Heating modes: Skin and Air (Servo Control)
• Programmable servo humidity control;
• Programmable servo oxygen control;
• Ergonomic height-adjustable support using pedals;
• Auxiliary skin temperature sensor – T2;
• Material storage drawer;
• Redundant safety system with automatic shutdown of heating in case of overtemperature;
• Pole for infusion pump and IV stand.

• Voltage: 100V to 240V (50/60 Hz)
• Consumption: 1100 VA
• Height with Lowered Dome: 147 cm (min.) – 167 cm (max.)
• Height with Raised Dome: 209 cm (min.) – 229 cm (max.)
• Width: 73 cm (with rear-facing panel)
• Depth: 105 cm
• Weight 175kg

• Flexible support for ventilation circuits – Goose Neck
• AR/O2 cylinder holders;
• Pressure regulating valve;
• Auxiliary LED lighting;
• Pulse oximeter (SpO2);
• Bilitron® 3006 Phototherapy.
