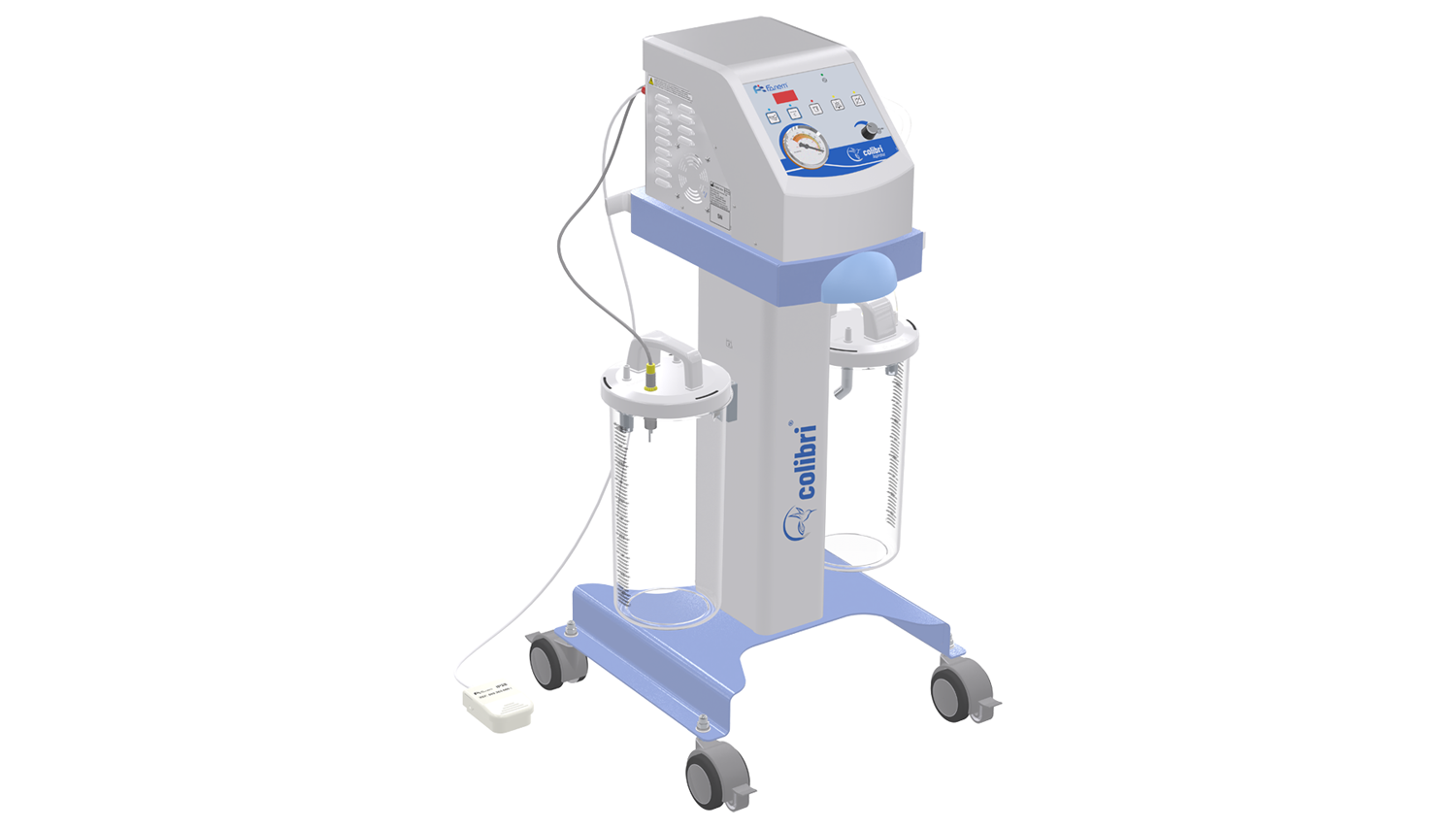

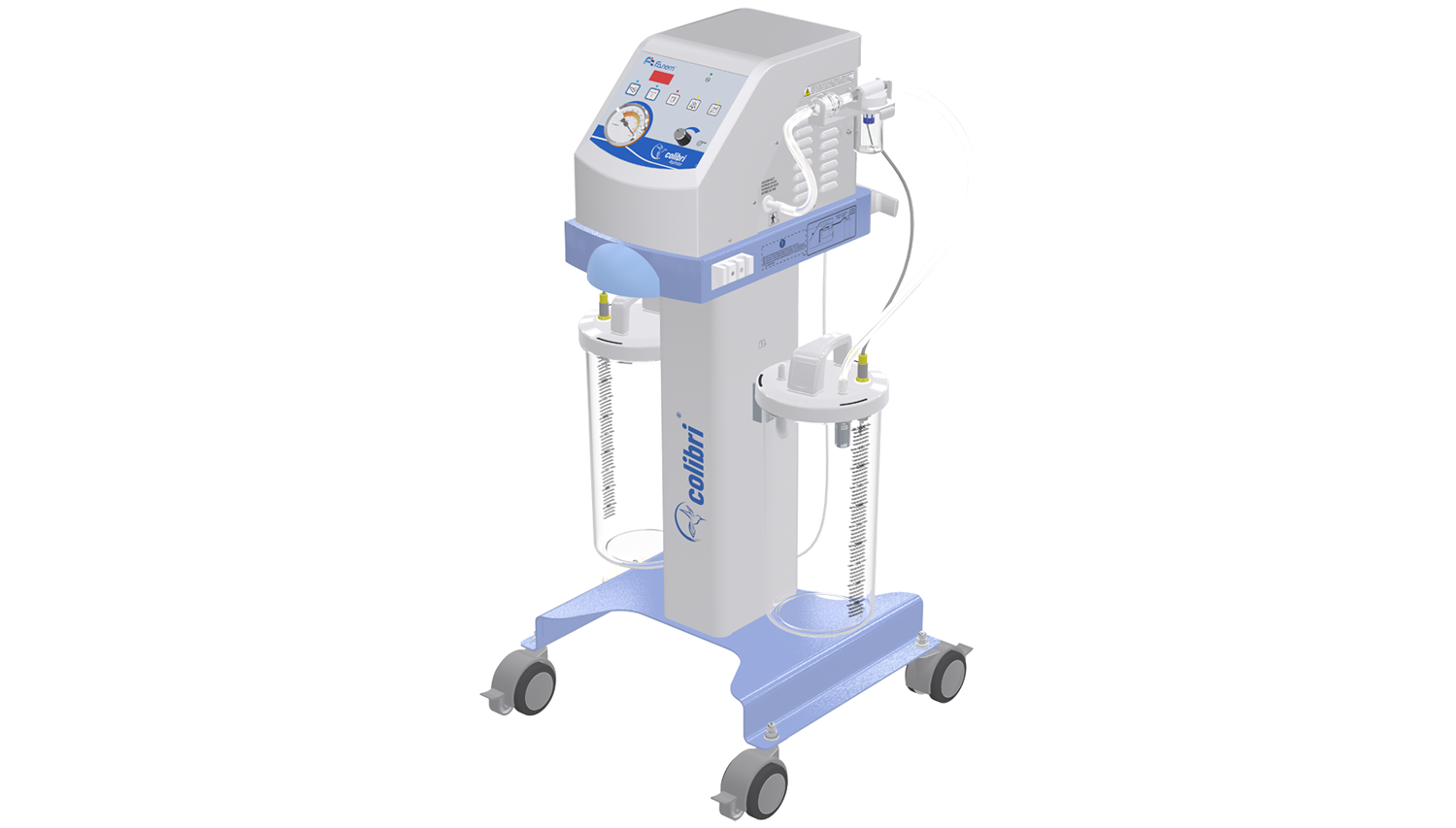

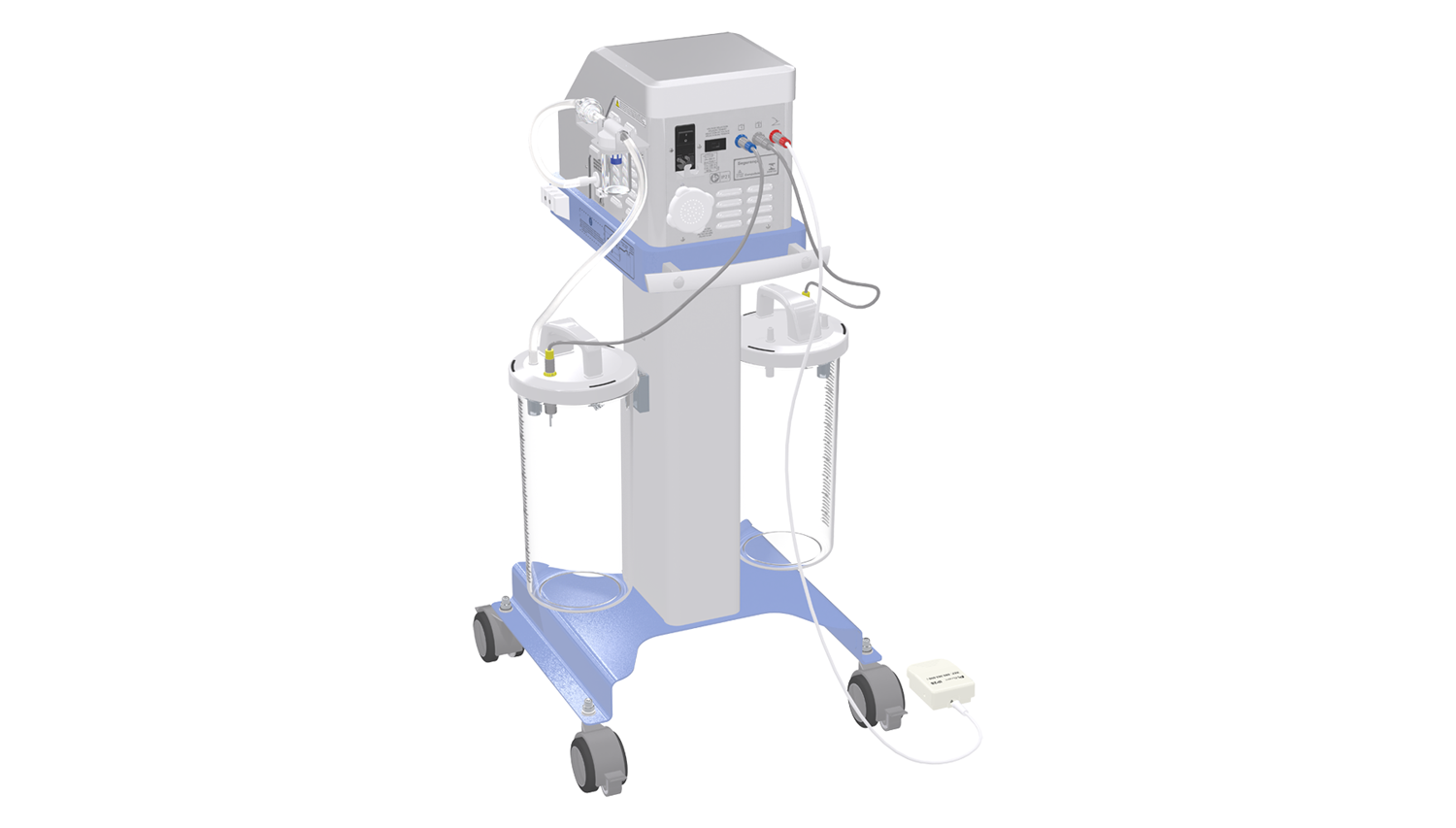

COLIBRI® DPM 60 SURGICAL ASPIRATOR

Meet the new generation of surgical aspirators from Fanem® Colibri®, a versatile and robust equipment developed to meet a wide range of procedures for aspirating secretions and liquid substances with different densities.

It provides mobility, easy handling and allows adequate suction in each type of application by controlling and monitoring suction pressure.

Its use is indicated for diverse application environments, such as surgical and obstetric centers, adult, pediatric and neonatal intensive care units, inpatient units, clinics and outpatient clinics, among others.

• Microprocessor control panel, with 8-segment LED display, with high brightness that allows distance viewing, in any environment;
• Audiovisual alarms;
• Oil-free double piston motor;
• Waterproof cabinet;
• Adjustable suction / vacuum intensity;
• Outlet protection by high-capacity air filter;
• Aspiration flow: 60 LPM;
• Vacuum meter with reading ranges from 0 to -760 mmHg / 0 to -100 Kpa;
• Maximum range: -90kPa/-675mmHg;
• Key on the panel for selecting the operating mode: continuous or intermittent/pedal;
• Four inlet protection systems with electronic level sensor that blocks motor operation, hydrophobic filter, integrated mechanical float that interrupts the suction flow, thus preventing overflow in the event of a full bottle and a kit with a safety bottle for foaming or aerated liquids fixed to the cabinet;
• Polycarbonate, graduated collector bottle. 5-liter capacity, autoclave and with handle on the lid for easy transport;
• It allows mounting of 2 collection bottles – capacity of up to 10 liters (20 liters optional);
• Mobile vacuum cleaner, with front and rear handles, mounted on pedestal with four 3-inch diameter swivel casters with brakes;
• Optional YANKAUER cannula, available in disposable or stainless steel, semi-curved or straight models.

• Voltage: 127VAC – 220VAC (selector switch);
• Frequency: 50 or 60 Hz;
• Consumption: 150 VA;
• Width: 51 cm
• Depth: 44 cm
• Height: 97 cm

• IP28 safety pedal (protection against water penetration);
• Air Filter for Colibri Vacuum Cleaner Model Fanem® Box with 5 units;
• Hydrophobic Filter for Colibri® Vacuum Cleaner | Box with 5 units.
• 5L Collection Bottle for Colibri Dpm 60 Fanem® Vacuum Cleaner Model
• Stainless steel cannula for suction
• Manual valve system for bottle change
