Bilitron® Plenum 6006 Phototherapy

The Plenum 6006 model presents the benefits of the Bilitron® family of phototherapy equipment, including new features. These attributes are fundamental to ensuring greater versatility in the treatment of neonatal hyperbilirubinemia (jaundice), as well as an increase in treatment efficacy.

• 15 LEDs for treatment in extended arrangement;

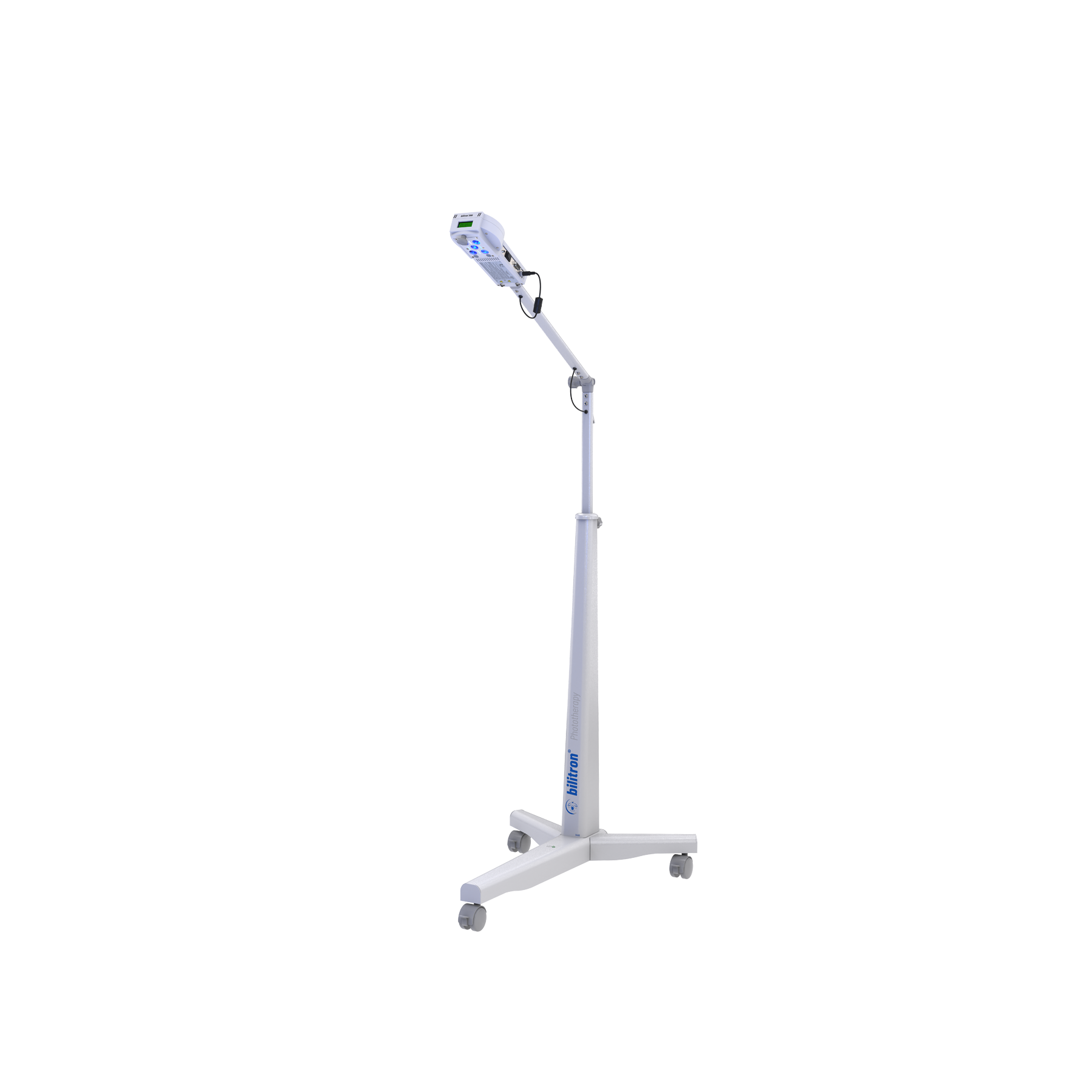

• Height-adjustable pedestal configuration;

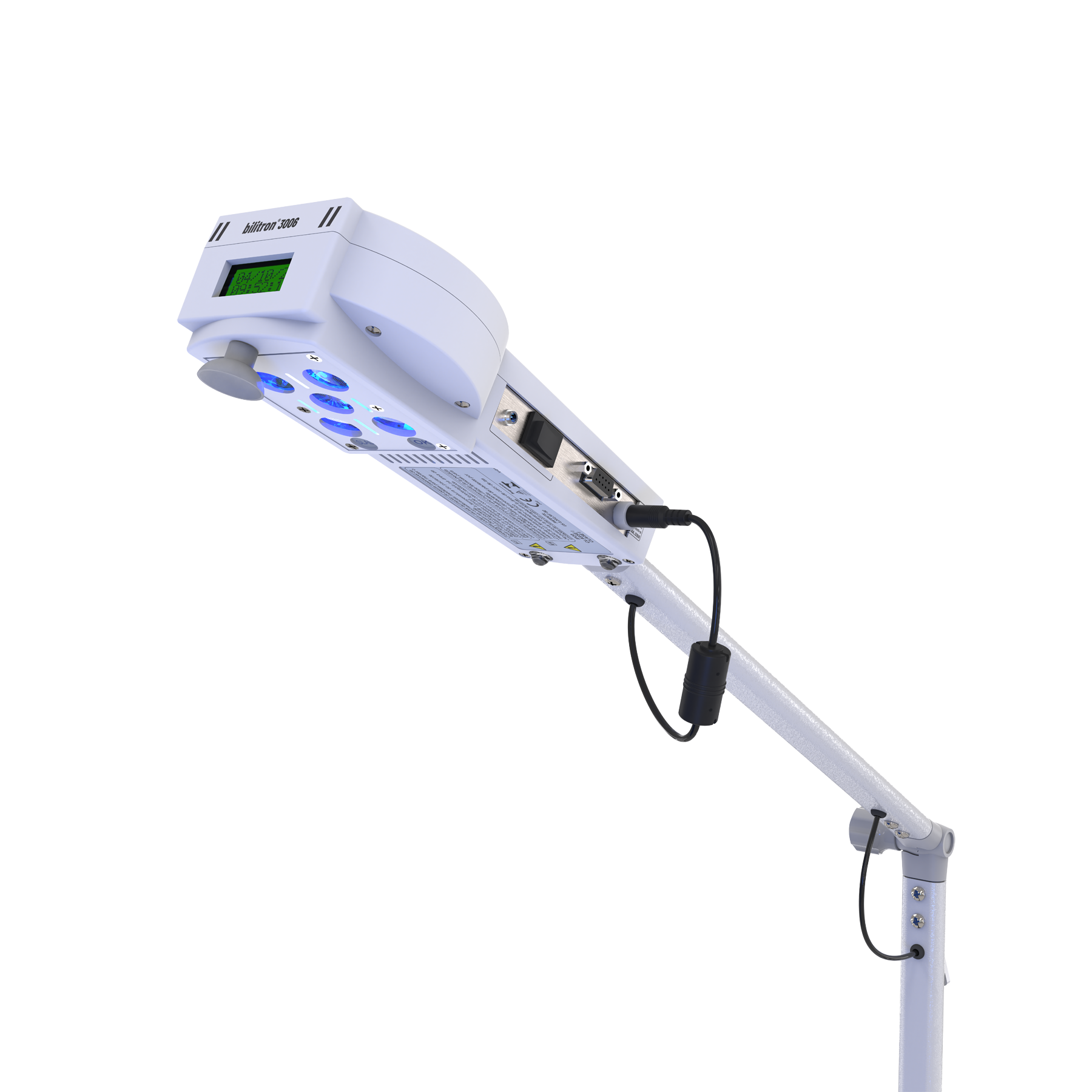

• Base with castors with brakes for transportation and arm that supports the head with articulated movements, which allows it to be used and positioned in incubators, heated cradles and ordinary cradles;
• High-brightness LED display with parameter visualization, even in low-light environments;
• Membrane keypad and microprocessor control for easy access to various functions;
• Integrated radiometer with optical probe (optional);
• Skin temperature sensor (optional);
• Adjustment of light intensity (irradiation), emitted from 0 to 100%, according to the patient’s treatment protocol, with adjustment every 10%;
• Record of treatment time;
• Hour totalizer for the useful life of the emitting source;
• Calendar clock;
• Data memory for issuing reports and output for communication with a computer printer;
• Auxiliary lighting;
• High irradiance, both in the center and at the edges of the focused area;
• Easily removable irradiance source module
• Low noise
• Case made of engineering plastic, contains alphanumeric display with back light.
• Temperature readout in °C (Celsius) or °F (Fahrenheit);
• High temperature protection system for the source module;
• Memorization of measured irradiation manually or automatically (every hour) to issue a report;
• RS232 output for printer or computer;

Effective Irradiated Area (Effective Surface)

Effective Irradiated Area where Ebi min / Ebi max > 0.4, according to IEC 60601-2-50:

Distance 30 cm 38.0 x 22.0 cm ±5%

Distance 40 cm 40.0 x 24.0 cm ±5%

Distance 50 cm 42.0 x 30.0 cm ±5%

Note: Surface similar to rectangular shape.

Radiometer

Measuring range 0 to 100 μW/cm2 nm

Temperature Sensor

Skin Temperature Sensor Reading Range: 17.0 – 50.0 °C

Skin Temperature Sensor Accuracy: ± 0.3 °C

Temperature display resolution: 0.1°C

Electrical Specifications

Mains frequency: 50/60 Hz

Power: 80 VA / 80 VA

Supply voltage: 100 – 240 V AC (full range – automatic bivolt)

Physical characteristics

Dimensions 6006 BPP (with Pedestal)

Height: 120 – 175 cm (adjustable stem)

Width: 60 cm

Depth: 79 cm

Swivel castor on pedestal 2” – w/ brake 3 wheels

Dimensions 6006 BPI (for Incubator)

Height: 8.5 cm

Width: 45 cm

Depth: 23 cm

Weight 6006 BPP (With Pedestal): 14 kg (Packed 16.5 kg)

Weight 6006 BPI (For Incubator): 02 kg (Packed 4.5 kg)

Noise : (ambient <40 dBA): < 50 dBA

• Integrated radiometer with optical probe;
• Skin temperature sensor;
