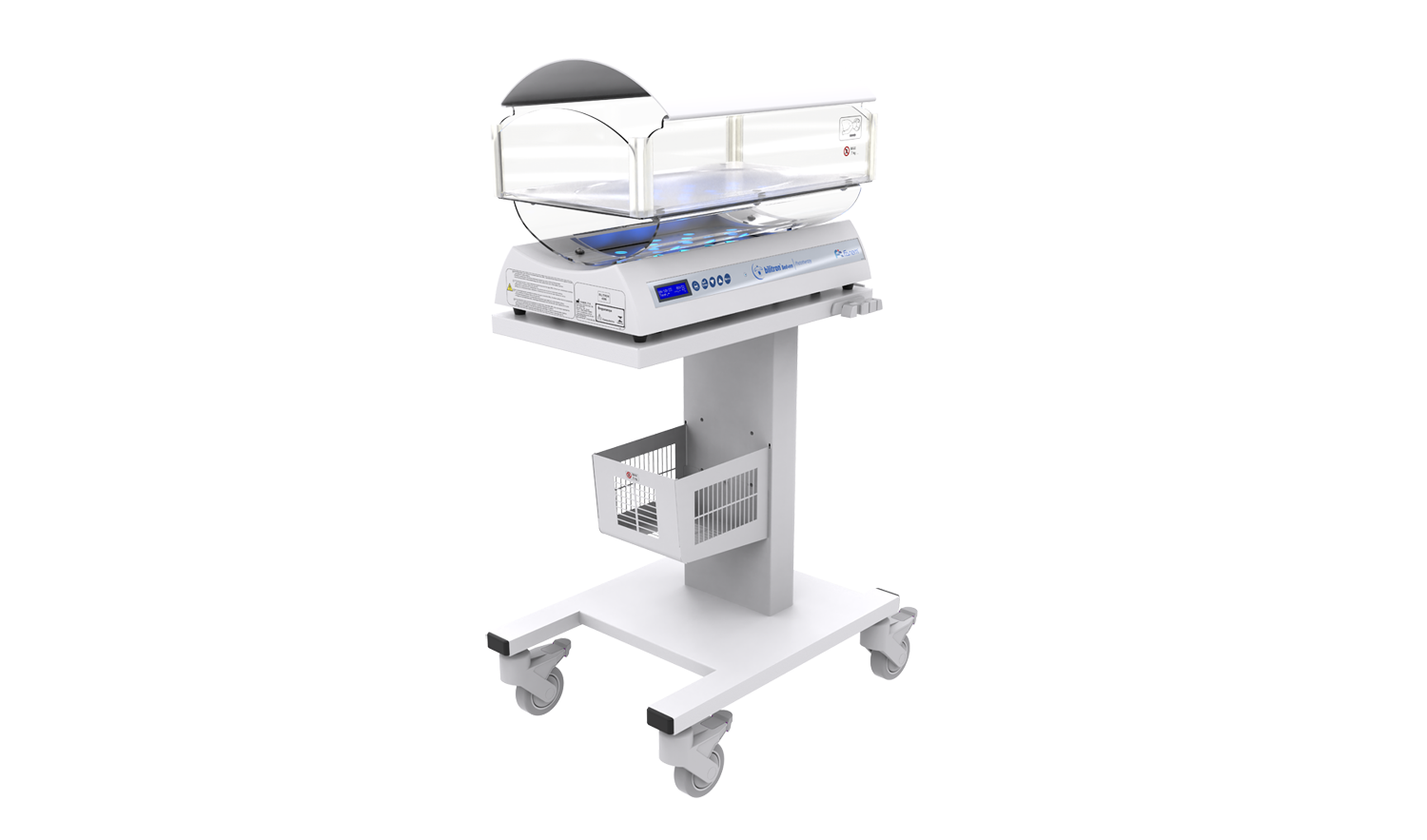

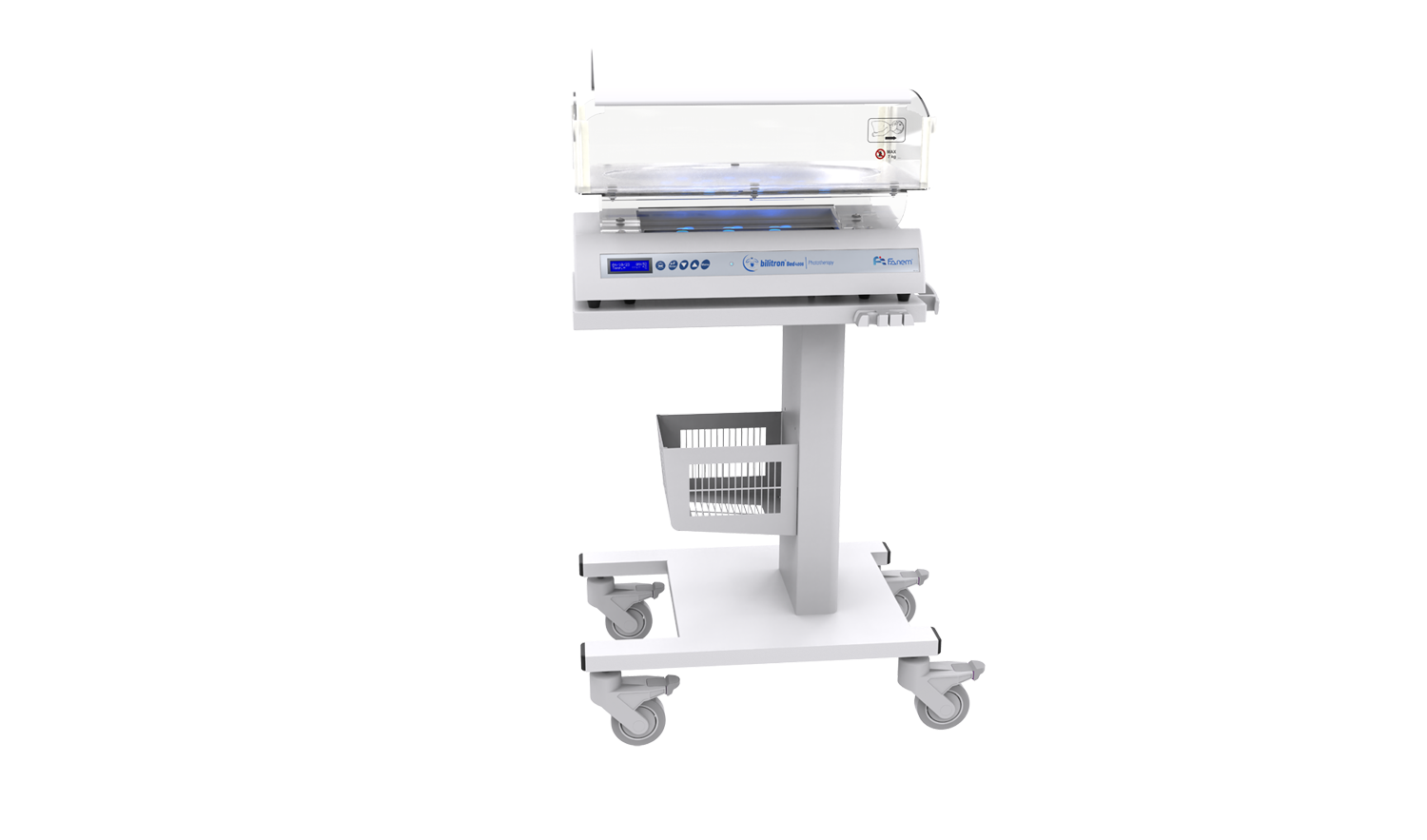

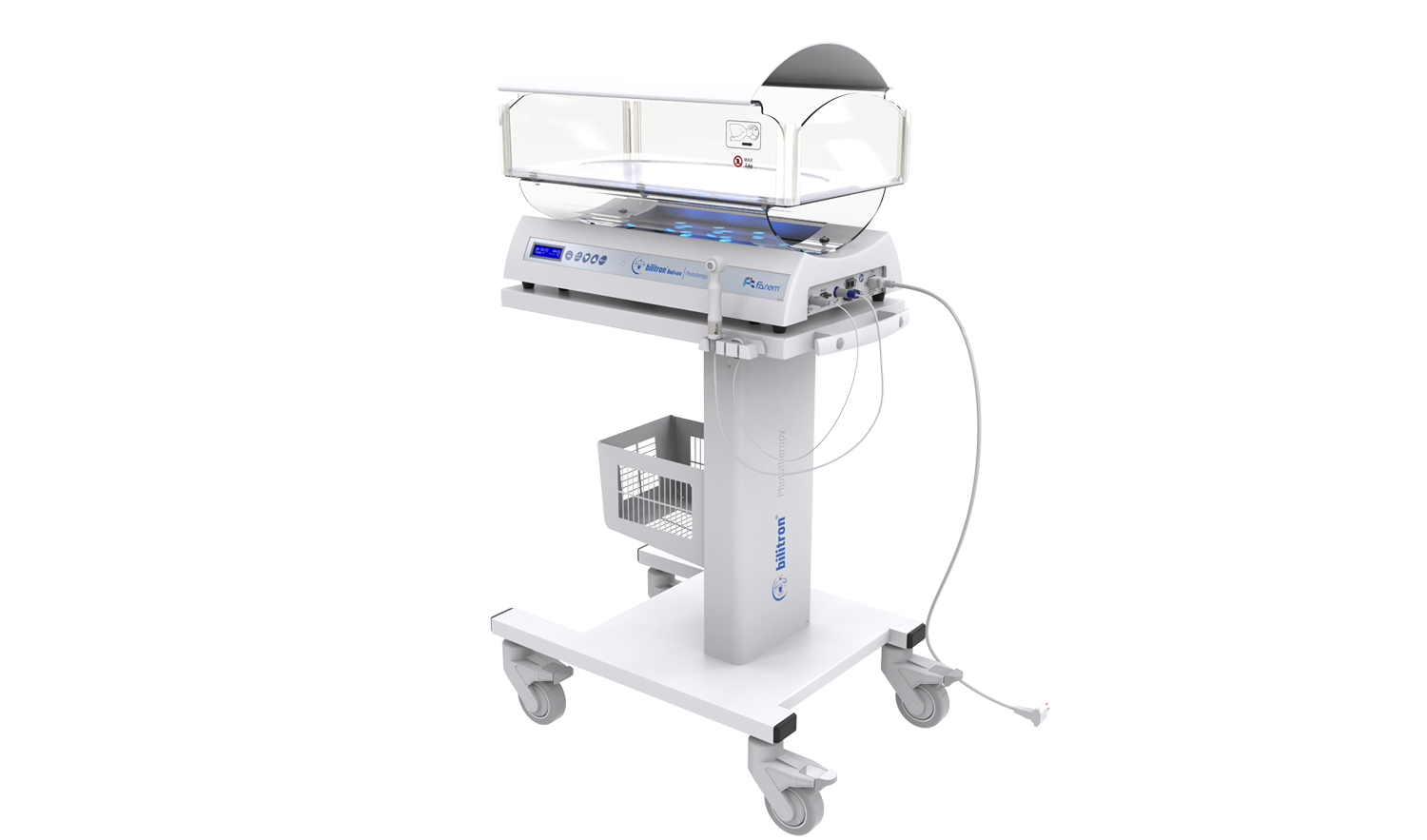

BILITRON® BED 4006 PHOTOTHERAPY

The Bilitron® Bed 4006 is designed to effectively and safely meet the phototherapy needs for the treatment of hyperbilirubinemia (jaundice) in term and preterm newborns. Its microprocessor control enables adjustment of the radiance applied and monitors treatment time and the service life of the light source.

It is a high-intensity reflective and reverse phototherapy equipped with a reflective dome and transparent gel mattress with exclusive Fanem® SuperLEDs, which operate with radiance in the blue spectrum of light, allowing safe irradiation without infrared or ultraviolet light and with a proven reduction in treatment time and low energy consumption.

• Microprocessor control of the radiance applied to the patient;
• Alphanumeric display with backlight and easy-to-use membrane keypad;
• Emission of light in the precise blue spectrum for the treatment of hyperbilirubinemia (jaundice);
• High radiance in the center and edges of the light focus;
• 17 SuperLEDs;
• Negligible levels of infrared and ultraviolet light;
• Average service life of 50,000 hours

Presentation:

• Mobile assembly with casters and accessories basket for easy movement around the unit;

• Voltage: Automatic dual voltage (100-240 V / 50-60 Hz)
• Consumption: 125 VA
• Radiance emitted: 47 µw/ cm².nm (maximum)
• Dimensions of the effective area on the mattress: 28×16 cm
• Height: 120 cm (mobile)
• Width: 46.8 cm (mobile)
• Length: 83.8 cm (mobile)
• Weight 31.9 kg (mobile)

• Optical probe to measure radiance;
• Eye protection (goggles);
• Gel mattress;
• Skin temperature sensor;
• Skin sensor adhesive;
• Sliding drawers (one large or two small drawers available);
