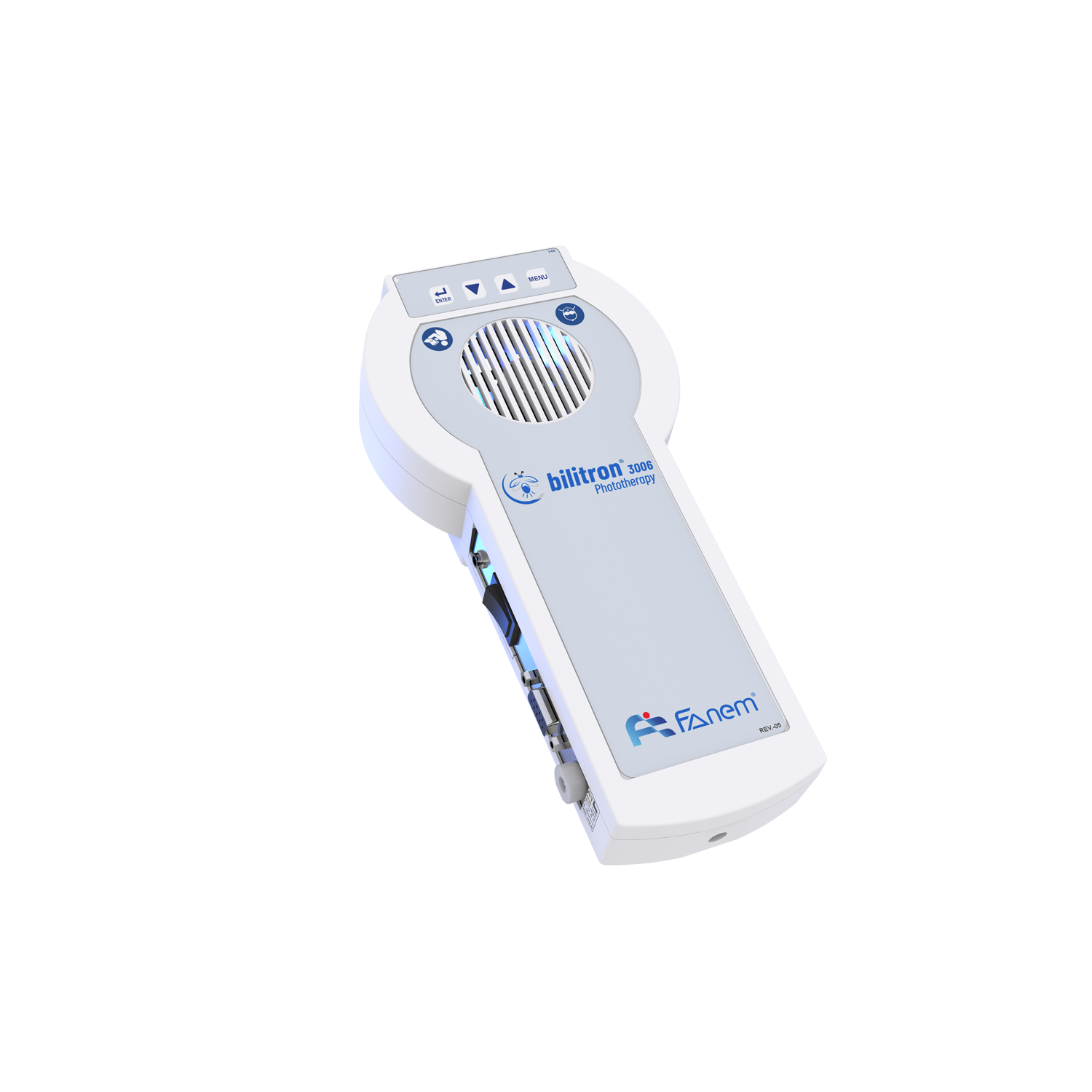

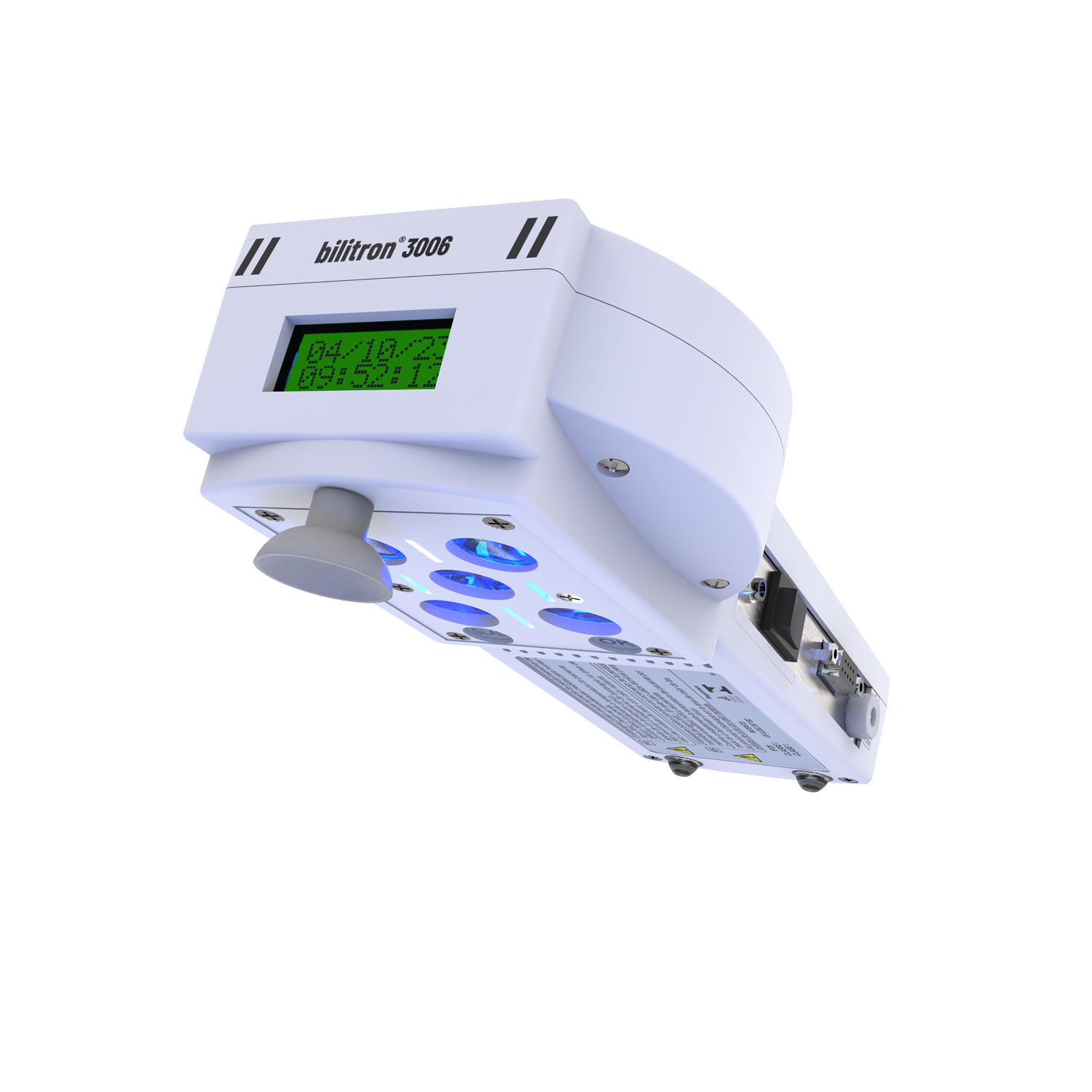

BILITRON® 3006 PHOTOTHERAPY

The Bilitron® 3006 is designed to effectively and safely meet the phototherapy needs for the treatment of hyperbilirubinemia (jaundice). Its microprocessor control enables adjustment of the radiance applied and monitors treatment time and the service life of the light source.

The exclusive Fanem® SuperLED technology works with radiance in the blue spectrum of light, allowing safe irradiation without infrared or ultraviolet light and with a proven reduction in treatment time and low energy consumption.

• Microprocessor control of the radiance applied to the patient;
• Alphanumeric display and easy-to-use membrane keypad;
• Emission of light in the precise blue spectrum for the treatment of hyperbilirubinemia (jaundice);
• High radiance in the center and edges of the light focus;
• Negligible levels of infrared or ultraviolet light;
• 5 SuperLEDs;
• Average service life of 50,000 hours.

Presentation:

• Assembly with four rubber feet;

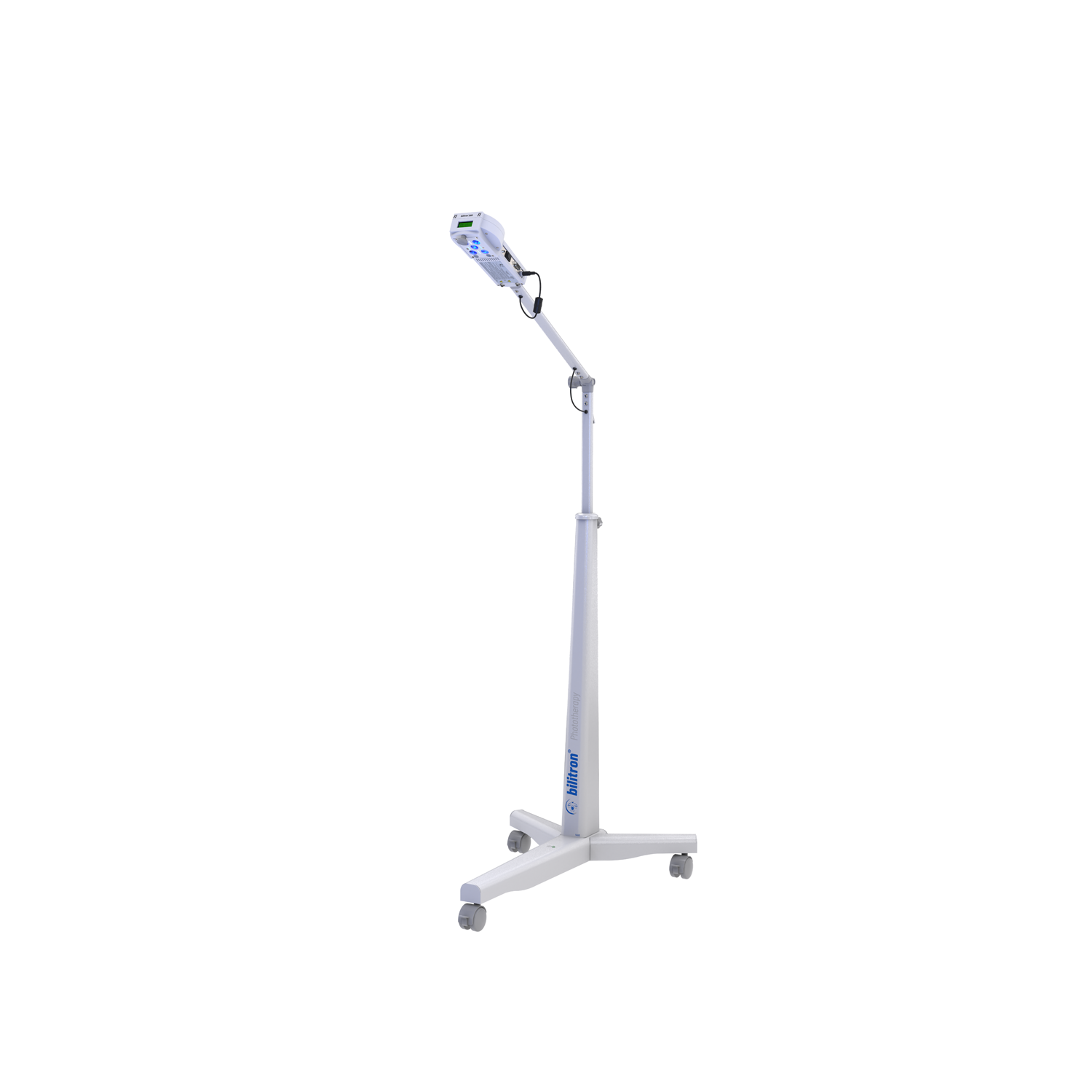

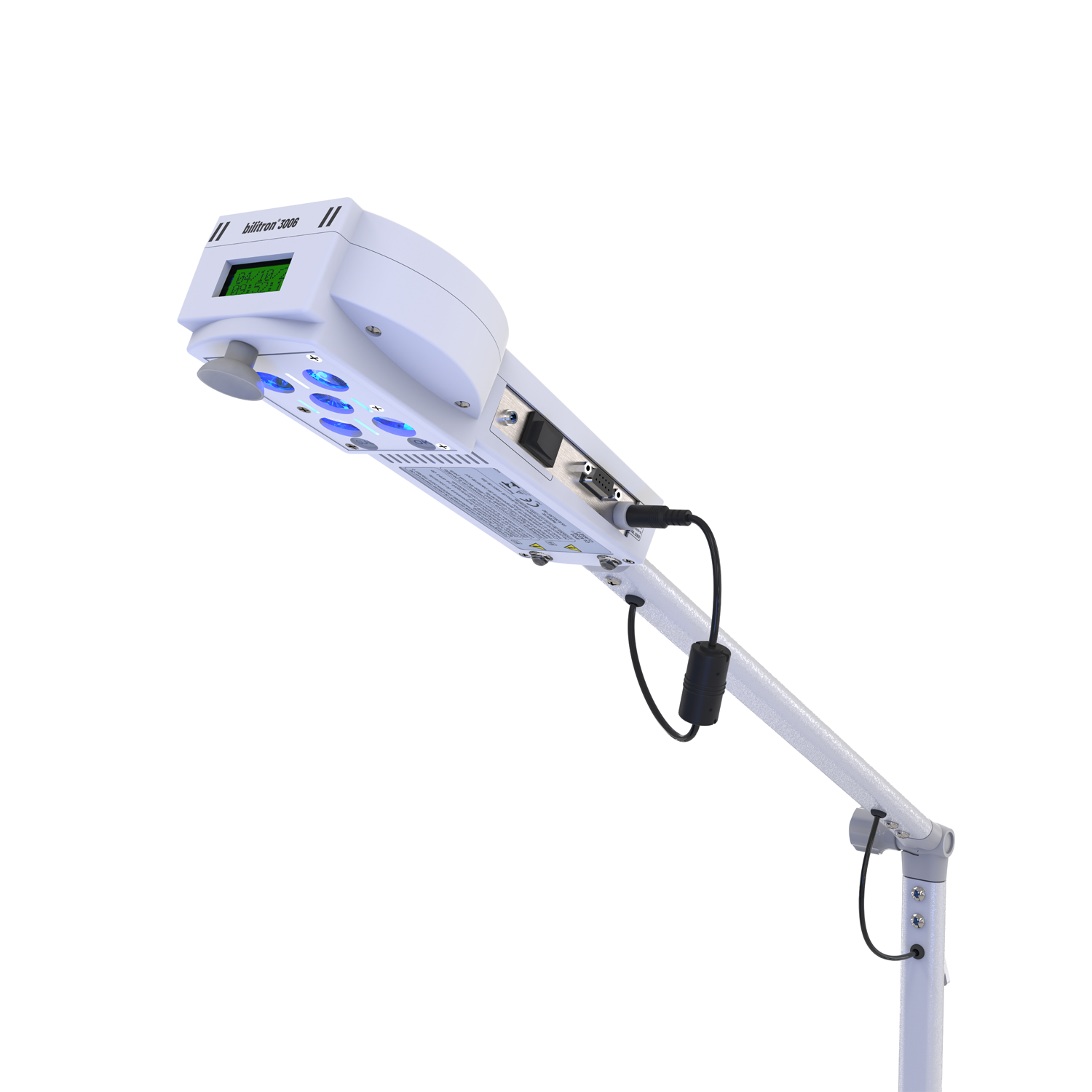

• Assembly with pedestal.
• Can also be connected to other devices from our neonatal range

• Voltage: Automatic dual voltage (100-240 V / 50-60 Hz)
• Consumption: 42-54 VA
• Height: 7.0 cm (with rubber feet), from 110.0 to 150.0 cm (with pedestal)
• Width: 11.6 cm (with rubber feet), 55.0 cm (with pedestal)
• Depth: 24.0 cm (with rubber feet), 67.0 cm (with pedestal)
• Weight 1.0 kg (with rubber feet), 8.5 kg (with pedestal)

• Optical probe to measure radiance;
• Skin sensor adhesive;
• Eye protection (goggles);
