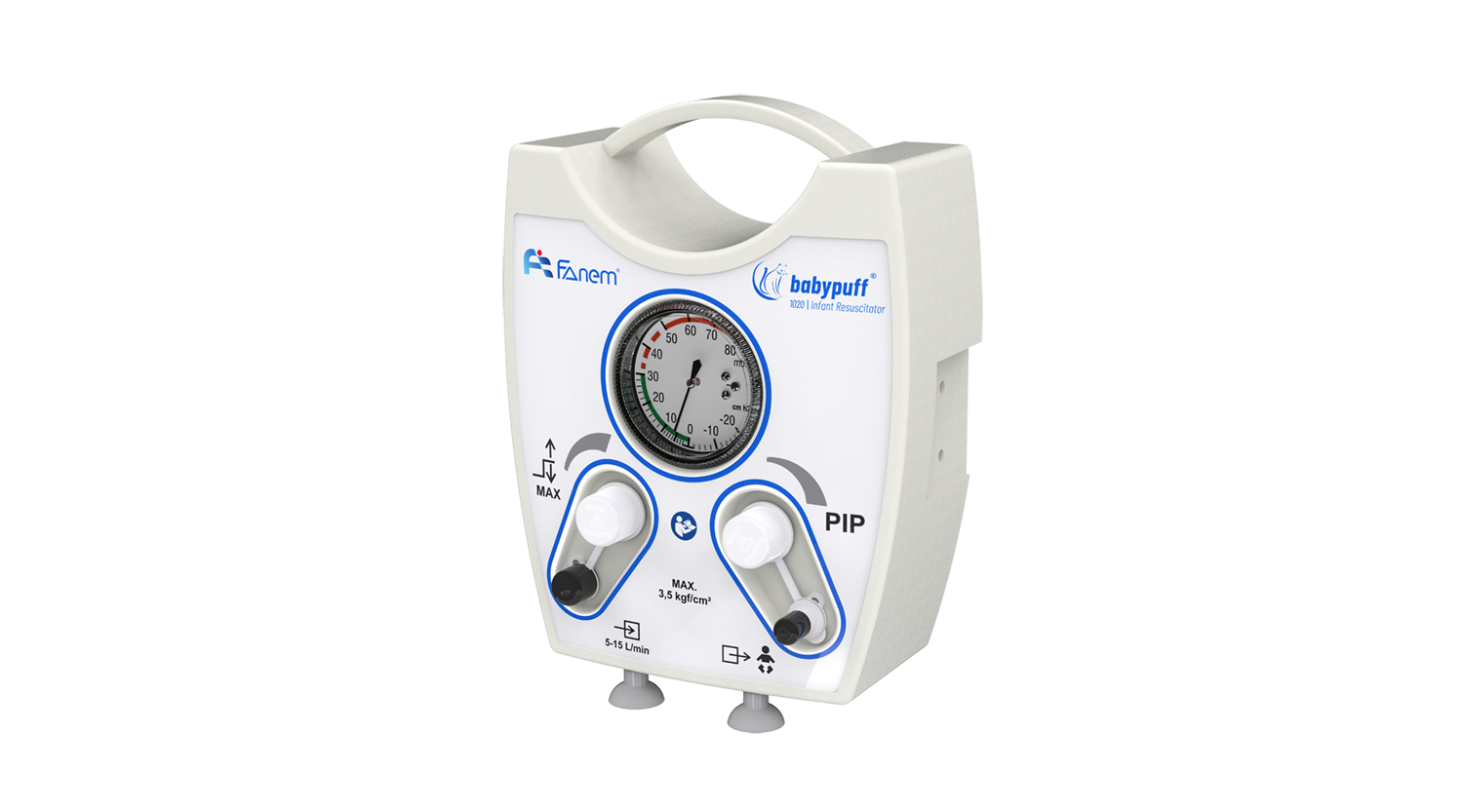

BABYPUFF® 1020 Neonatal resuscitator

The Babypuff® 1020 neonatal resuscitator provides optimum results in resuscitation procedures, operating with an external gas source. It has 2 easily adjustable valve systems, which parameterize and control all the resuscitator’s functions. It provides excellent oxygenation, inflating the patient’s lungs safely with a consistent PIP and excellent control in maintaining PEEP, thus maintaining functional residual capacity and consequently opening the alveoli, preventing the patient’s lungs from collapsing. This device is different from manual bag resuscitators and one-piece valve resuscitators, as it takes readings directly from a fast-response vacuum gauge with an efficient patient interface system.

• Ergonomic design for portability.
• It offers integrated features for effective airway management, such as pressure readings directly on a fast-response vacuum gauge.
• With a manual ventilation rate set by digital occlusion of the PEEP valve orifice, procedures can be carried out easily, avoiding operator fatigue and providing better control of parameters.

Simple and precise adjustments:

• Maximum pressure adjustment valve for relief or safety;
• Inspiratory peak pressure adjustment valve or PINSP;
• Valve for adjusting the positive end pressure or PEEP;
• All adjustments are made via a single vacuum gauge;

Presentation:

• Portable version (with handle);
• Table version;
• Wall version;
• Mobile version (trolley);

Accessories:

• Silicone masks;
• Intermediates for connections;
• Blender;
• O2 flow meter;
• Gas inlet hose;
• Corrugated tubing;
• Ayre T with PEEP valve;
• Test lung (latex free);
• Type E O2 and AR cylinder with or without regulating valve, flow meter and pressure gauge;
• 1.5 m O2 and AR extension

• Gas Inlet Flow: 5 to 15 LPM
• Maximum Pressure: 70 cm H2O
• PIP: from 5 to 70 cm H2O
• PEEP: from 2 to 10 cm H2O
• Pressure gauge: -20 to 80 cm H2O
• Height: 26 cm (30 cm table version and 127 cm mobile version)
• Width: 20 cm (28 cm table version and 38 cm mobile version)
• Depth: 09 cm (25 cm table version and 65 cm mobile version)
• Weight 1.7 kg (2.8 kg table version and 15.5 kg mobile version)
