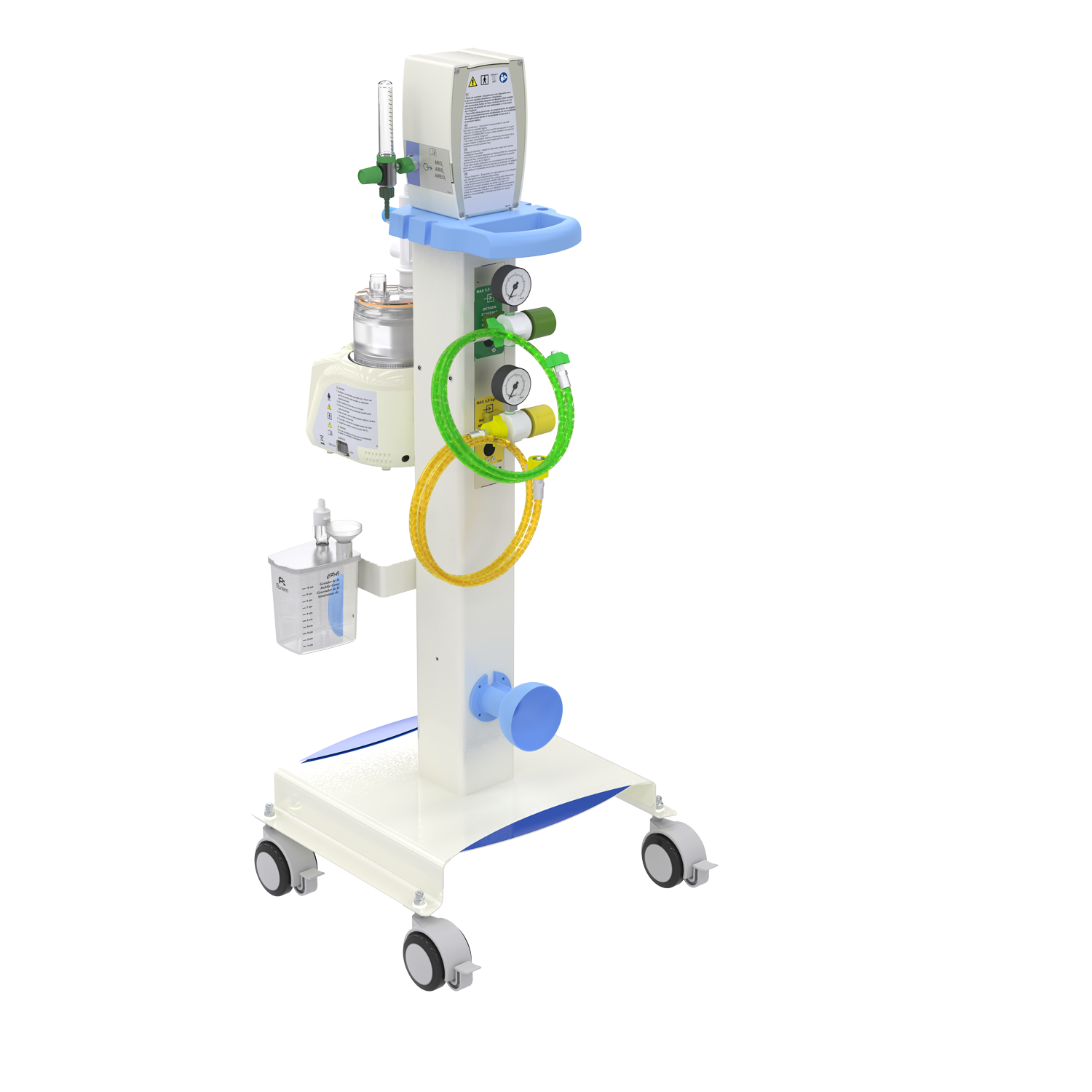

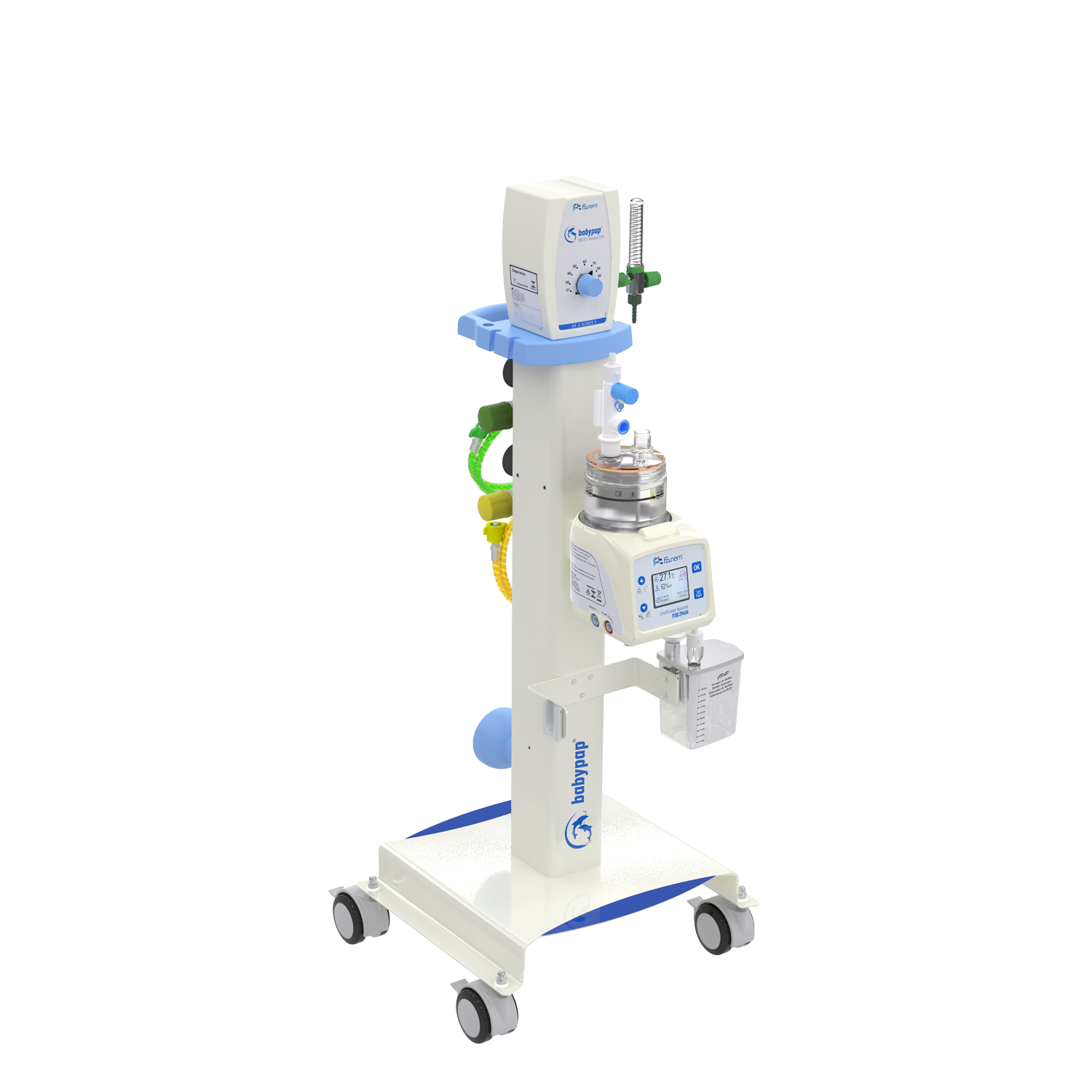

Babypap® 1150-S with FOG 2140A humidifier

Discover the new nasal bubble CPAP circuit developed by Fanem® for use in non-invasive ventilatory assistance. Applied especially to newborns with respiratory distress, the Babypap® 1150-S improves gas exchange, prevents atelectasis, improves pulmonary residual capacity and reduces hospitalization time.

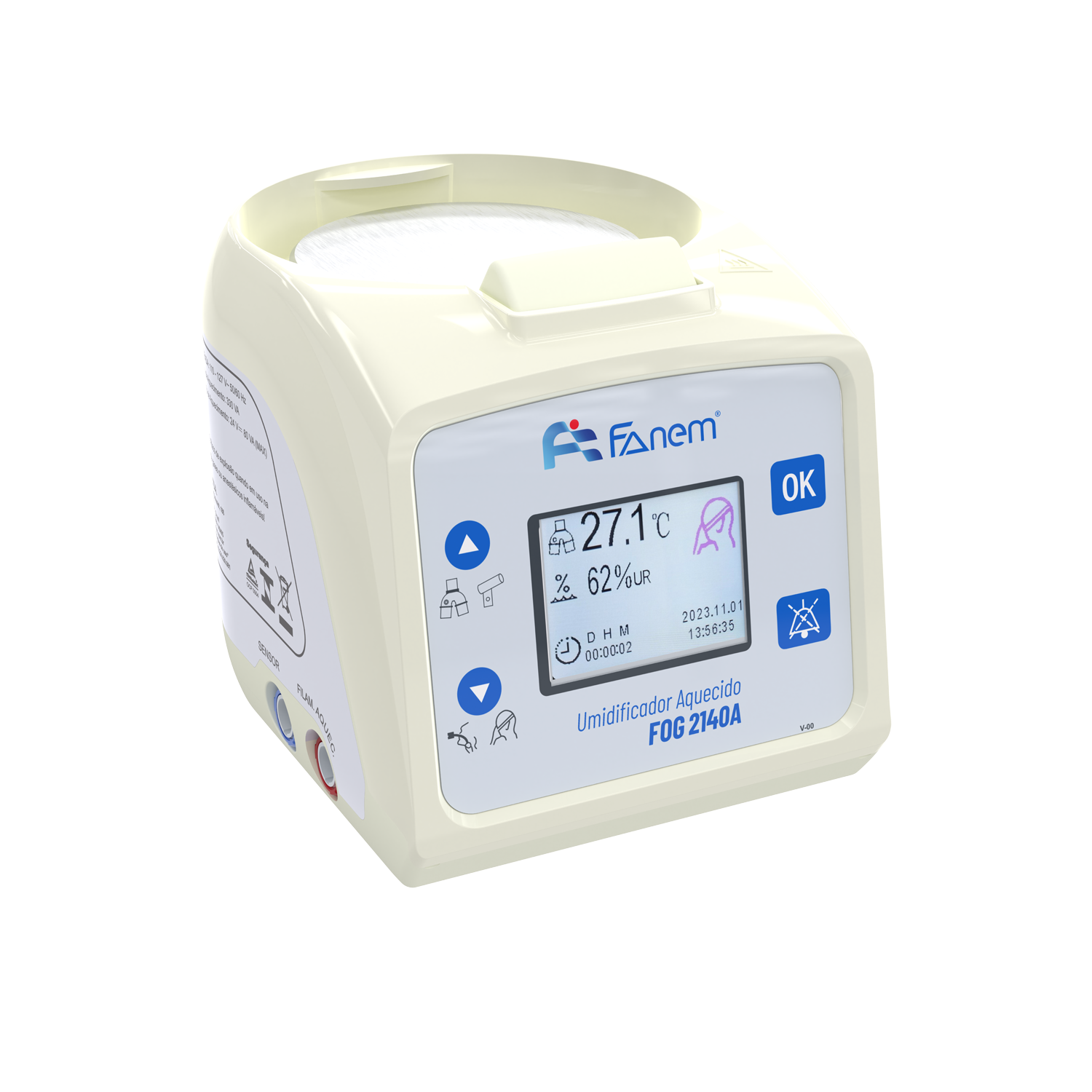

Babypap® provides adjustable continuous positive airway pressure by delivering a continuous flow of compressed air and oxygen, heated and humidified, as well as end-expiratory pressure controlled by a water column and bubble. Our bubble CPAP works in together with the FOG 2140 A humidifier, optimizing the temperature delivered to the patient and reducing water condensation.

• Microprocessor controls;
• Adjustment of the temperature delivered to the patient (Servo Control);
• Indication of temperatures, chamber exit and proximal to the patient, humidity delivered to the patient, date and time and time of use;
• Audiovisual alarms;
• Key to silence alarms;
• Allows circuit with heating;
• Double sensor for monitoring temperatures close to the patient and at the water chamber output.
• LCD color screen.

• Voltage: 110 v or 220 v (50/60 Hz)
• Consumption: 330VA (FOG 2140 A) – apply this value when sold with the humidifier
• Pressure relief valve: 17 cm H2O
• Maximum inlet flow: 15 L/m
• Blender with FIO2 adjustment: from 21 to 100% O2
• CPAP pressure: up to 0 to 15 cm H2O
• Regulated bubble bottle pressure: from 0 to 10 cm H2O
