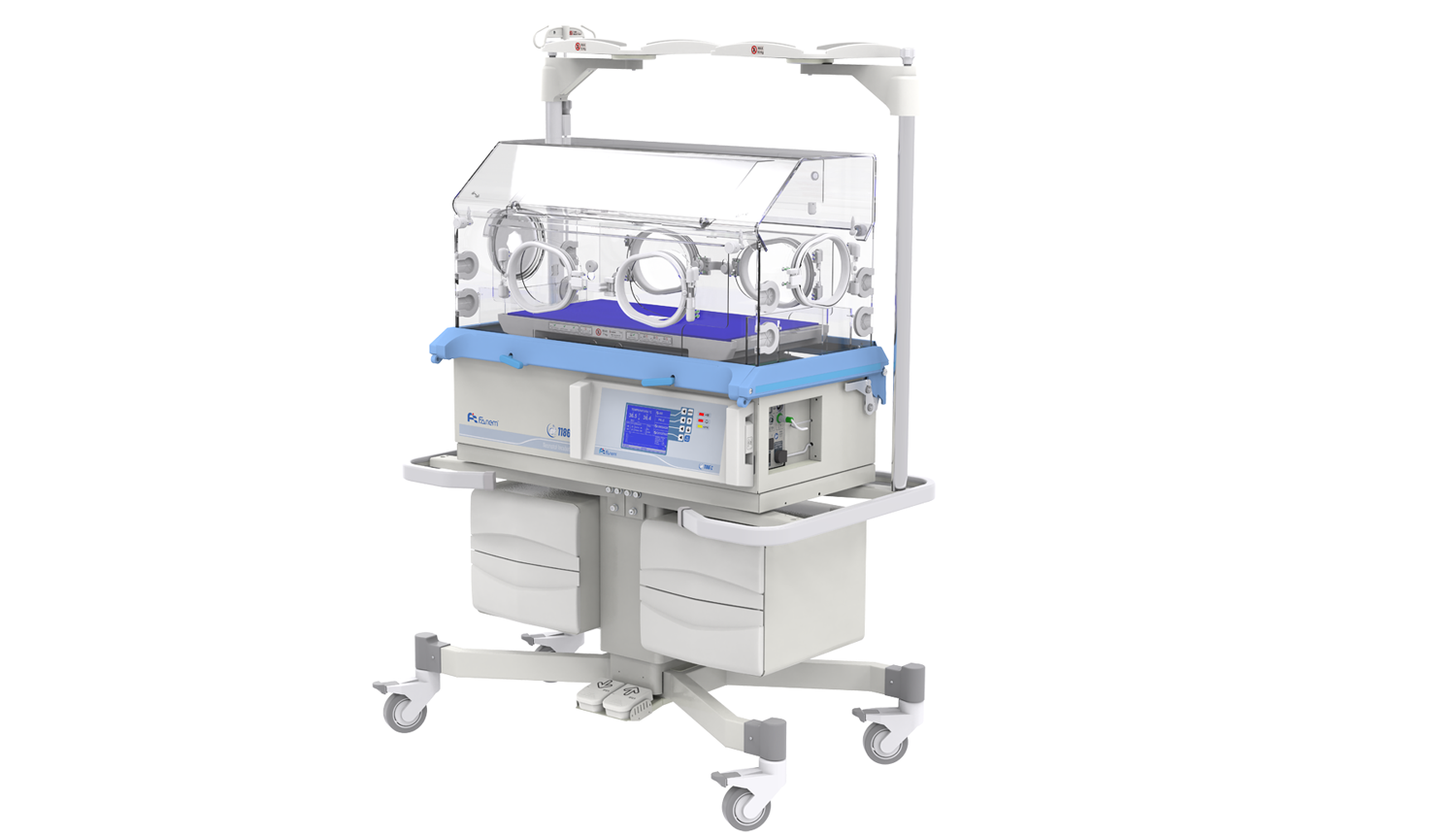

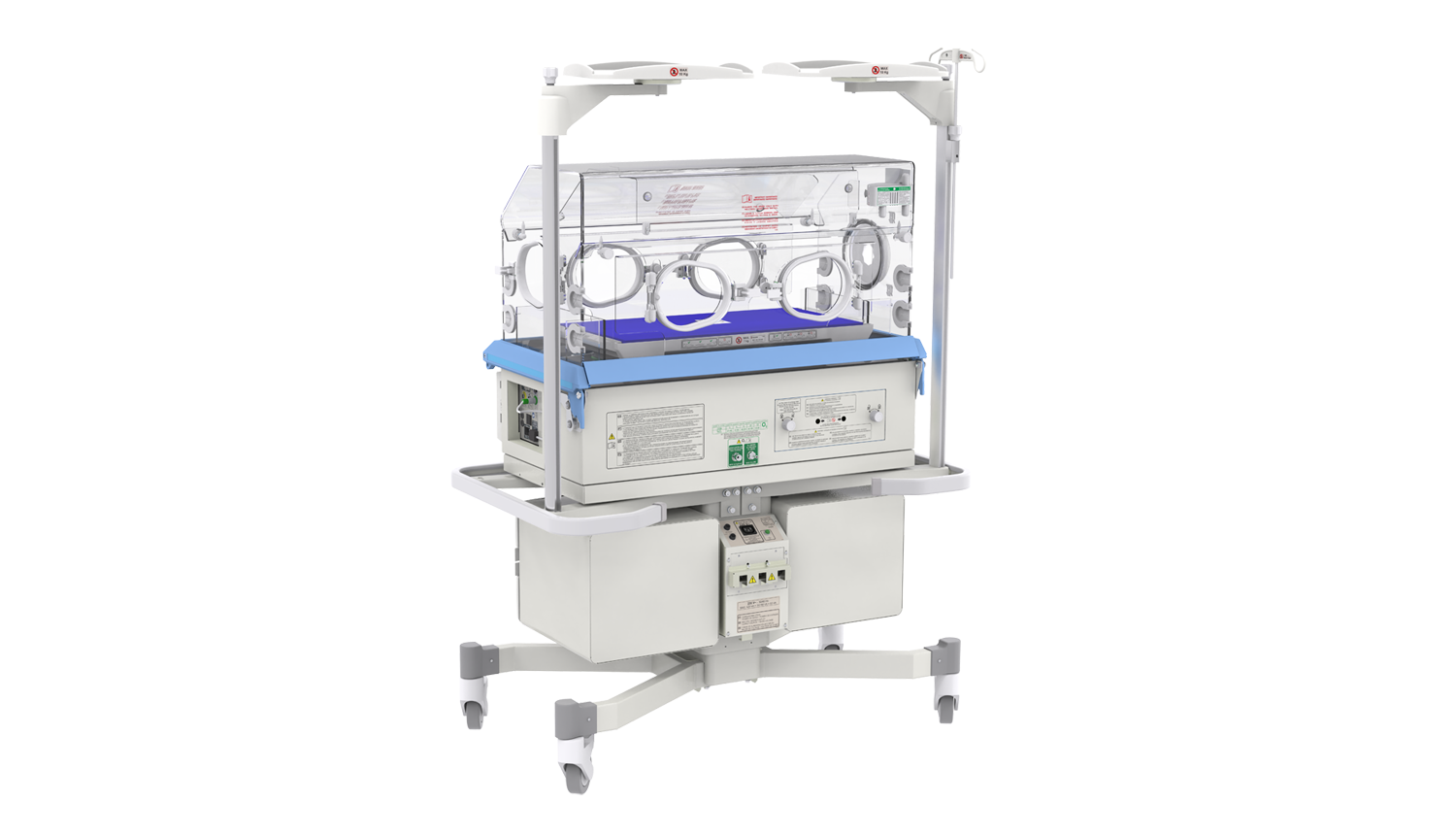

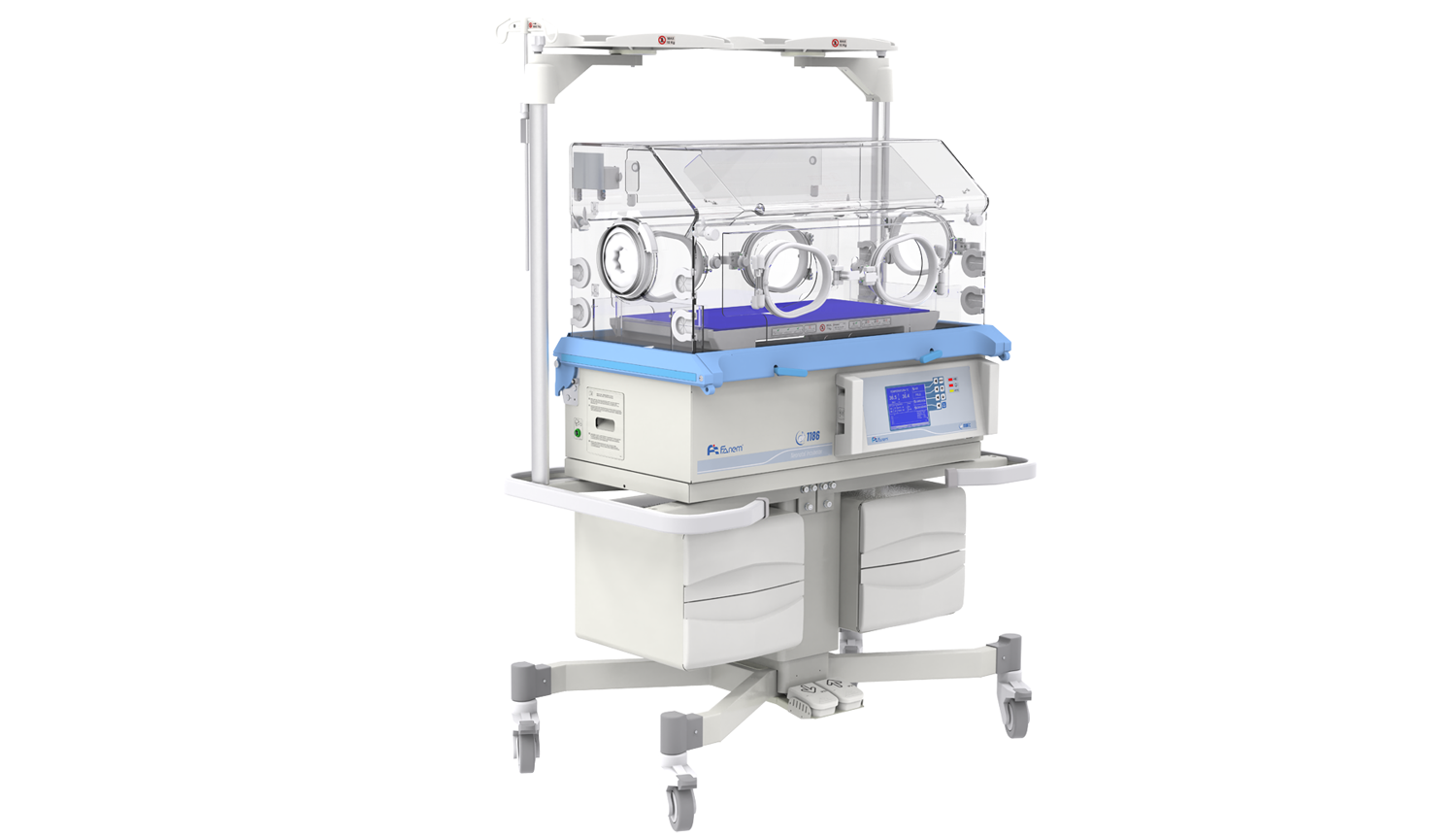

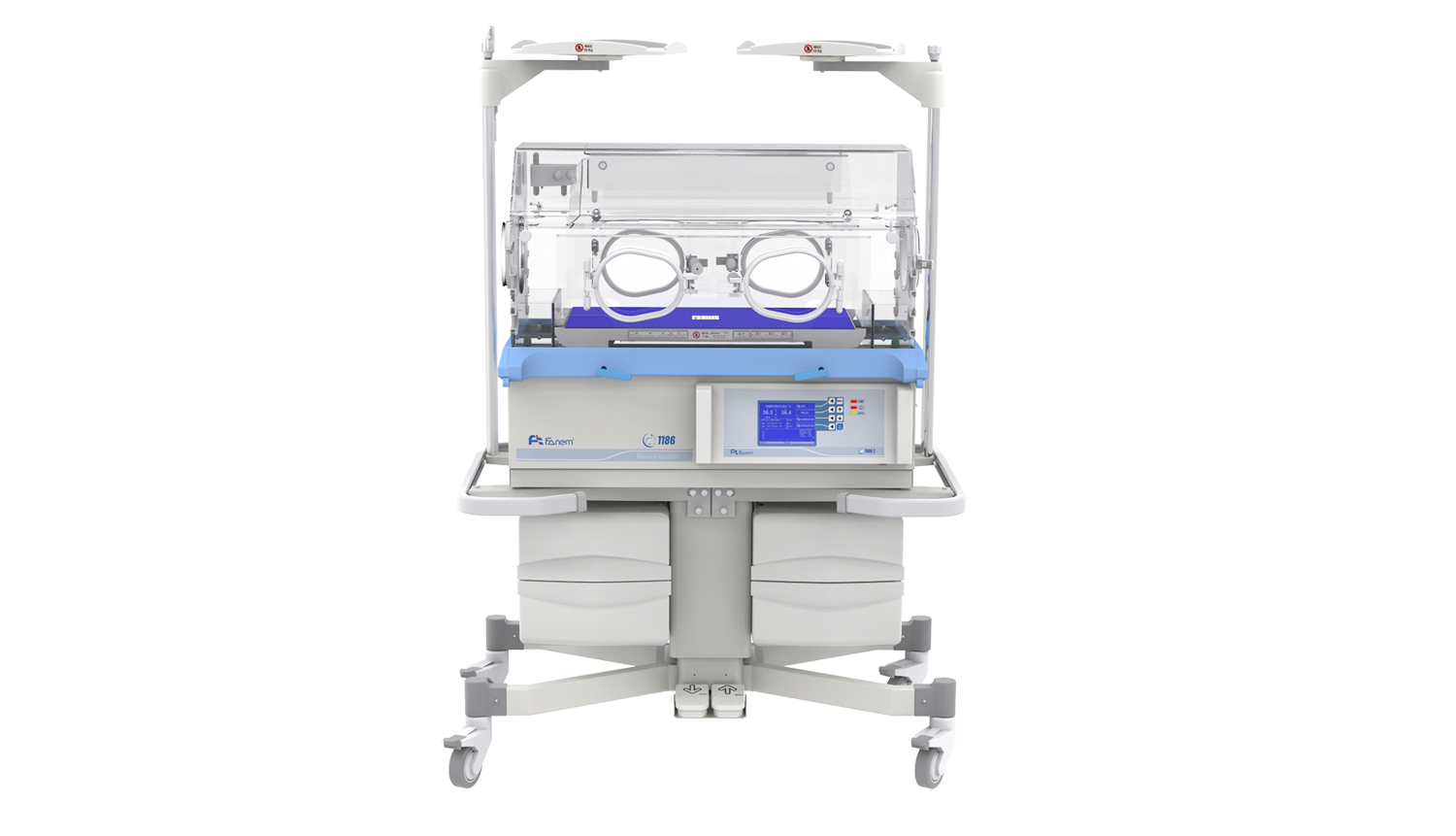

1186® C Incubator

The Fanem® 1186® C incubator features a monochrome LCD display for quick visualization of monitoring parameters, a scale integrated into the bed, an X-ray drawer, a Servo Control, among other items. The sliding bed is designed to allow quick access to the patient’s upper airway. Safety and ease of use define this model.

• 5-inch monochrome LCD display with graphical parameter display;
• Heating modes: Skin and Air (Servo Control);
• Easy to use;
• Double-walled dome;
• Radiolucent with (optional) X-ray drawer under the bed, which allows for less handling of the patient;
• Sliding bed to facilitate patient care, allowing quick access to the upper airway;
• Tilt system for reverse Tendelenburg and Trendelenburg positions to facilitate patient care;
• Servo-controlled humidification system;
• Auxiliary temperature sensor;

• Voltage: 110 or 220 V
• Consumption: 450 VA (incubator), 450 VA (auxiliary outlets) and 100 VA (ergonomic support). When included in the incubator, these values must be added to obtain the total consumption.
• Height: 138 cm (fixed stand)
• Height: 134 – 154 cm (ergonomic stand)
• Width: 107 cm
• Depth: 56 cm
• Weight 82kg

• Bilitron® Sky 3006 Phototherapy;
• Bilitron® Sky 5006 Phototherapy;
• Bilitron® Planum 6006 Phototherapy
• X-ray drawer under the bed;
• Servo-controlled oxygen system;
• SpO2 pulse oximeter;
• In-bed scale for up to 10 kg, with weight displayed on the incubator display;
• O2 cylinders
• O2 cylinder holder
• Ergometric support for bed height adjustment;
• Pole for infusion pump;
• Flexible support for ventilation circuits – Goose Neck
• Auxiliary lighting;
• Babypuff® 1020 neonatal resuscitation device;
• Auxiliary outlets;
• Support shelves
